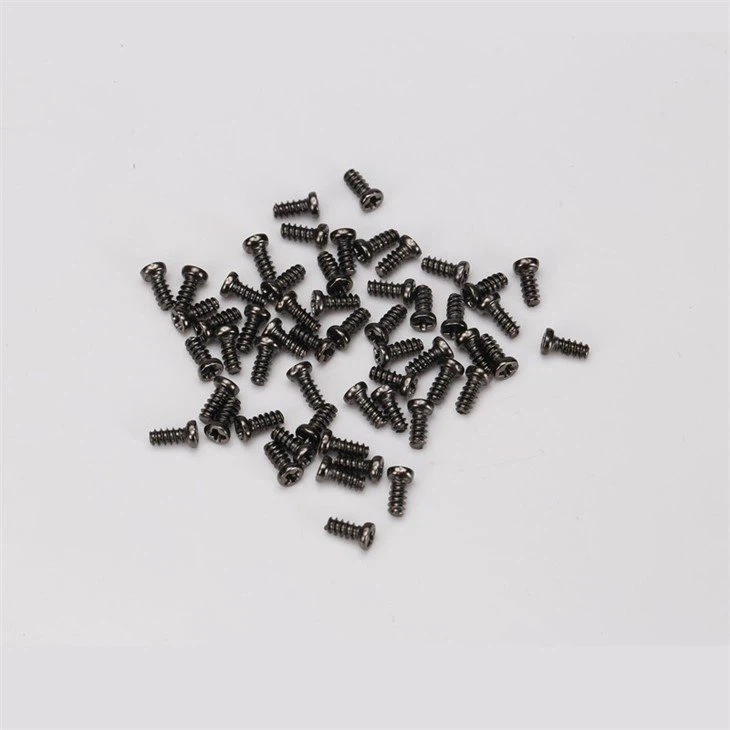

Precision screws play a crucial role in a wide array of applications, from delicate electronic devices to large – scale industrial machinery. Their fatigue strength, which determines how well they can withstand repeated loading over time, is of utmost importance. To ensure the quality and reliability of these tiny yet vital components, specific testing standards have been established.
Table of Contents
1. The Significance of Fatigue Strength Testing:
Fatigue is a phenomenon where a material fails under repeated stress cycles, even when the stress levels are below the material’s ultimate tensile strength. For precision screws, which are often subjected to dynamic forces in their working environments, understanding and testing their fatigue strength is essential. It helps manufacturers predict the lifespan of the screws, prevent premature failures that could lead to costly equipment breakdowns, and ensure the safety of end – users.
2. International Standards: A Global Benchmark:
One of the most widely recognized sets of standards for fatigue testing of precision screws comes from international organizations. These standards provide a unified framework for testing procedures, ensuring consistency and comparability across different regions and manufacturers. For example, the International Organization for Standardization (ISO) has developed a series of standards related to the fatigue testing of fasteners, including precision screws.
ISO standards typically outline the test specimen preparation, the type of loading to be applied (such as axial, bending, or torsional), the number of stress cycles, and the method of data collection and analysis. By following these standards, manufacturers can conduct fatigue tests in a standardized way, allowing for accurate assessment of the screw’s performance under real – world conditions.
3. American Society for Testing and Materials (ASTM) Standards:
In the United States, the American Society for Testing and Materials (ASTM) is a leading authority on testing standards. ASTM has specific standards for fatigue testing of various types of fasteners, which are highly relevant to precision screws. These standards take into account the unique characteristics of American manufacturing processes and the specific requirements of different industries.
ASTM standards often detail the test equipment to be used, the environmental conditions during testing (such as temperature and humidity), and the criteria for determining the fatigue life of the screw. For instance, they may specify the minimum number of cycles a screw should withstand without failure under a given stress level to be considered acceptable for a particular application. This provides clear guidelines for both manufacturers and end – users, ensuring that the precision screws meet the necessary quality standards.
4. Industry – Specific Standards:
Different industries may have their own additional testing standards for precision screw fatigue strength, based on the specific demands of their applications. In the aerospace industry, for example, where precision screws are used in critical components such as aircraft engines and airframes, the standards are extremely stringent.
Aerospace standards may require more rigorous testing conditions, such as higher stress levels and a greater number of stress cycles, to simulate the extreme operating environments of aircraft. They may also focus on specific failure modes that are unique to aerospace applications, such as corrosion – fatigue in the presence of harsh chemicals and high – altitude conditions. Similarly, in the medical device industry, where precision screws are used in implants and surgical instruments, the standards emphasize biocompatibility and long – term reliability under physiological conditions.
5. Test Specimen Considerations:
The design and preparation of the test specimen are crucial aspects of fatigue strength testing. The specimen should be representative of the actual precision screw in terms of material, geometry, and surface finish. Any deviations from the production screw could lead to inaccurate test results.
For example, if the production screw has a special coating to improve corrosion resistance, the test specimen should also have the same coating applied under the same conditions. The dimensions of the specimen, such as the diameter and length of the shank, should be precisely measured to ensure consistency in the testing process. Additionally, the surface finish of the specimen can significantly affect its fatigue strength, so it should be carefully controlled during preparation.
6. Data Analysis and Interpretation:
Once the fatigue tests are completed, the collected data needs to be analyzed and interpreted correctly. This involves plotting stress – life (S – N) curves, which show the relationship between the applied stress level and the number of cycles to failure. By analyzing these curves, manufacturers can determine the fatigue limit of the precision screw, which is the maximum stress level below which the screw can theoretically withstand an infinite number of cycles without failure.
Data analysis also helps in identifying any trends or anomalies in the test results. For example, if a significant number of screws fail at a relatively low number of cycles under a certain stress level, it may indicate a problem with the manufacturing process or the material quality. Based on the analysis, manufacturers can make necessary adjustments to improve the fatigue strength of the precision screws.
In conclusion, the testing standards for precision screw fatigue strength are a complex yet essential part of ensuring the quality and reliability of these components. From international and industry – specific standards to specimen preparation and data analysis, each step plays a vital role in accurately assessing the fatigue performance of precision screws. By adhering to these standards, manufacturers can produce high – quality screws that meet the demands of various applications, providing end – users with reliable and long – lasting products.
